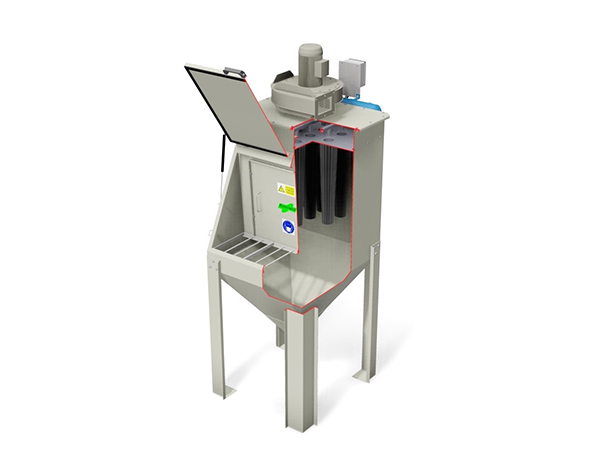

The Bag Tip 120 Series (SFJ) is an extremely simple and compact ‘self-contained’ solution for the decanting of 25kg sacks/bags into downstream process.

The unit incorporates a sack tipping chamber with integral gas strut assisted door and tipping grid, coupled to a rear mounted fan assisted 9m2 filter unit employing our well established 120mm conical cartridge technology.

The unit is designed to give effective dust control and protection to the operator and production environment during the tipping operation. A variety of discharge options are available to suit all process requirements.

Need advice? Talk to an expert today.

Speak to one of our experienced team for help and guidance by calling 01952 290500

We're available Monday-Thursday, 8:15AM-4:30PM and Friday until 3:15PM.

Get in touch

Features

  • Rugged carbon steel painted construction with option for stainless steel (all grades)
  • Filter medias to suit all applications and products
  • Removable bag tipping grid/resting shelf
  • Integrated and pre-wired control panel options
  • ATEX options available
  • Mounting feet or support legs available
  • Empty bag disposal spigot and/or sack compactor units

Advantages

  • Minimal maintenance, reliable operation and long filter life – saves time and money
  • Fast and easy element removal/replacement – saves man hours and money
  • High efficiency guarantees air quality, eliminates production contamination, protects environment and personnel and saves energy and money – ensuring compliance with COSHH and EPA regulations
  • Conical filter technology for enhanced cleaning – prolongs life of the filter
